Bringing our expertise and knowledge, from our single-person lift for home and passenger lifts, we focus and use the same design and technology from these products in all of our lifts for the home. These include color-changing RGB lighting, Bluetooth and wireless diagnostics of the lift controller, security and safety components, and more to make the lift for your home, one of the most advanced and safe products on the market.
|
Quiet Travel |
Increased comfort with reduced waiting times |
|
Plug and Play 2.0. |
Reduced installation time based on unique new features. |
|
Electrical safety gear |
The very short reaction time of the magnet release system ensures the highest safety. |
|
Varispeed |
Increases nominal speed up to 1.2m/s based on carload without increasing nominal consumption. |
|
Compact Drive System |
Housed at the top of the lift, out of sight |
Quick Details
Integrated top: spraying steel plate +LED light
Car wall: spraying steel plate
Front wall:304 hairline stainless steel
Car door:304 hairline stainless steel
Control box: Integrated control box, 304 hairline stainless steel
Flooring: PVC
Production Features

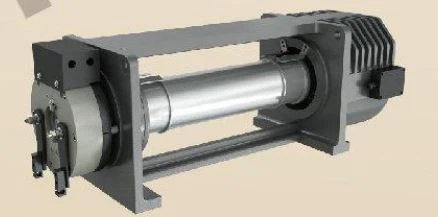

The steel belt host machine
●It's smaller, which adopts a small shaft diameter traction sheave, a reverse wheel, a counterweight wheel,
●An elongated main body arrangement so that the projected area of the wellhole is smaller. Its efficiency is 20% higher than that of the traditional motor.


The composite flat steel belt
●Highly wear-resistant, eliminating the phenomenon of slipping and skidding.
●the service life of a composite steel belt is 3 times longer than that of traditional traction ropes.
Aolida belt-breaking monitoring device
-
real-time detection of the metal fatigue or damage of composite steel sheet, and makes early warning in advance before the maintenance personnel and users are aware of the condition, to ensure timely replacement.


Space optimization
Dexterous structure multiplies the space value and shortens the volume by 20% more than the control cabinet with machine room and by 30% than the control cabinet without machine room.
Landing Door

Man-machine Interface

Integral control box

Multi-media display

Wall-mounted control box

Wall mounted

Handrail control box
Parameters
| Capacity (KG) | Speed | Cabin size | Opening size | Shaft size | Others |
| KG Person | m/s | H*W*D (mm) | W*H (mm) | W*D (mm) |
/ |
| 250 3 | 0.4 | 2250*900*1000 | 700*2000 | 1500*1350 | Wheelchair inaccessible |
| 320 4 | 0.4 | 2250*900*1100 | 700*2000 | 1500*1450 | |
| 400 5 | 0.4 | 2250*900*1200 | 800*2000 | 1700*1550 | Wheelchair accessible |
Installation
Passenger safety and comfort
Improved clearance of light curtain to avoid smaller objects being trapped
Higher requirements for fire resistance of car interiors
Improved strength and durability of car walls and door
Brighter illumination in the car
Service personnel safety
Larger permanent safety spaces in lift shaft headroom and pit
Mandatory lift control panel with stop button in the lift shaft pit
Brighter illumination in the shaft
