lift cost for house

Item No.: AEP100
Type: Villa Elevator
Brand Name: Aolida or OEM
Capacity:250-400 kg
Speed:0.4 m/s
Material: Hairline, Etching, Mirror Stainless Steel, 304 Stainless Steel
Send Inquiry

Product Introduction

Quick Details:

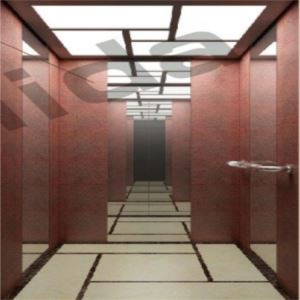

Ceiling.304 mirror stainless steel + acrylic +304 mirror stainless steel trim strip + LED light

Car wall: 304 titanium stainless steel +304 mirror stainless steel

Front wall: 304 mirror stainless steel

Car door. 304 mirror stainless steel

Control box: integrated control box, 304 mirror stainless steel

Flooring: PVC

Product VR(Click)

Product Features

The steel belt host machine



Breaking away from tradition and creating new dimensions of space

●It's smaller, which adopts a small shaft diameter traction sheave, a reverse wheel, a counterweight wheel,
●An elongated main body arrangement so that the projected area of the wellhole is smaller. Its efficiency is 20% higher than that of the traditional motor.

e671240e45d0bd2c26d4c9867b9e55a

The composite flat steel belt



Breaking away from tradition and creating new dimensions of space

●Highly wear-resistant, eliminating the phenomenon of slipping and skidding.
●the service life of a composite steel belt is 3 times longer than that of traditional traction ropes.

813d9479aa2e40d4e0726d3359017bf

Man-machine Interface

5f8a56461bb2e54d575536ef5454cad

7e46c0e28c68c46adb432f27e0293f8
8d9373d7fdbe1168d792edc2e0e5d5c
cbb354b9134bd846559d8c3f6144882

Note: The integral operation panel front and front wall width should be less than 150mm, such as the use of other displays, please get in touch with the company marketing manager.


parameters of AEP100 Villa series
Model number AEP100 AEP100 AEP100
weight KG 250 320 400
Speed M/S 0.4-1.0 0.4-1.0 0.4-1.0
Person 3 4 5
Shaft size W*D (MM) 1500*1350 1500*1450 1700*1550
Pit  (mM) 300 300 300
Overhead (MM) 2950 2950 2950
Cabin size W*D*H (MM) 900*1000*2250 900*1100*2250 900*1200*2250
Opening size W*H (MM) 700*2000 700*2000 800*2000
Note:1. The above dimensions are for design reference, and the specific dimensions are subject to the civil layout plan provided by the contract signing. (Different ceilings are used, different values are taken for the height of the top floor, please consult our marketing center for details.)
        2. If you choose sightseeing villa elevator, please refer to the sightseeing elevator catalogue for the dimensions of the height of the top floor and the depth of the pit.


8b292826f50abcf8679ee37f538fb73

Company Introduction

1dfed6efe2594ec280a9e8563861488



Our Customers

4a76429628b700f10221086f4079a3c

c2e2cc8a40d6ced3a3756ead4d4ebf5

c4c920dd1aff2135c7200b0e1ac938b

([~HK89I(J5DQN{[6H9WW27

1. HOW LONG CAN I GET THE FEEDBACKS AFTER WE SENT THE INQUIRY?

We will reply to you within 24 hours of the working day.

2. ARE YOU A DIRECT MANUFACTURER OR TRADING COMPANY?

We are one direct elevator manufacturer.

3. WHAT PRODUCTS CAN YOU OFFER?

We have a total of 9 categories of products into 13 series and 122 types of solutions fit the most scenarios of buildings Such as Passenger elevator, Cargo Elevator, Home Elevator, Escalator Moving walks,…etc

4. CAN YOU DO CUSTOMIZED PRODUCTS?

Yes, our target is always to find out the most optimized solution, both on commercial and technique.

5. HOW ABOUT THE CAPACITY OF YOUR COMPANY?

Our production capacity is 30,000 units / year..
